T28
- Positioning repeatability: 0.01mm
- Integrates ball screw, motor and dual encoders
- Delivers powerful thrust with robust and reliable performance
- Compact and lightweight design for versatile applications
High Precision
Integration
High Performance
Light Weight

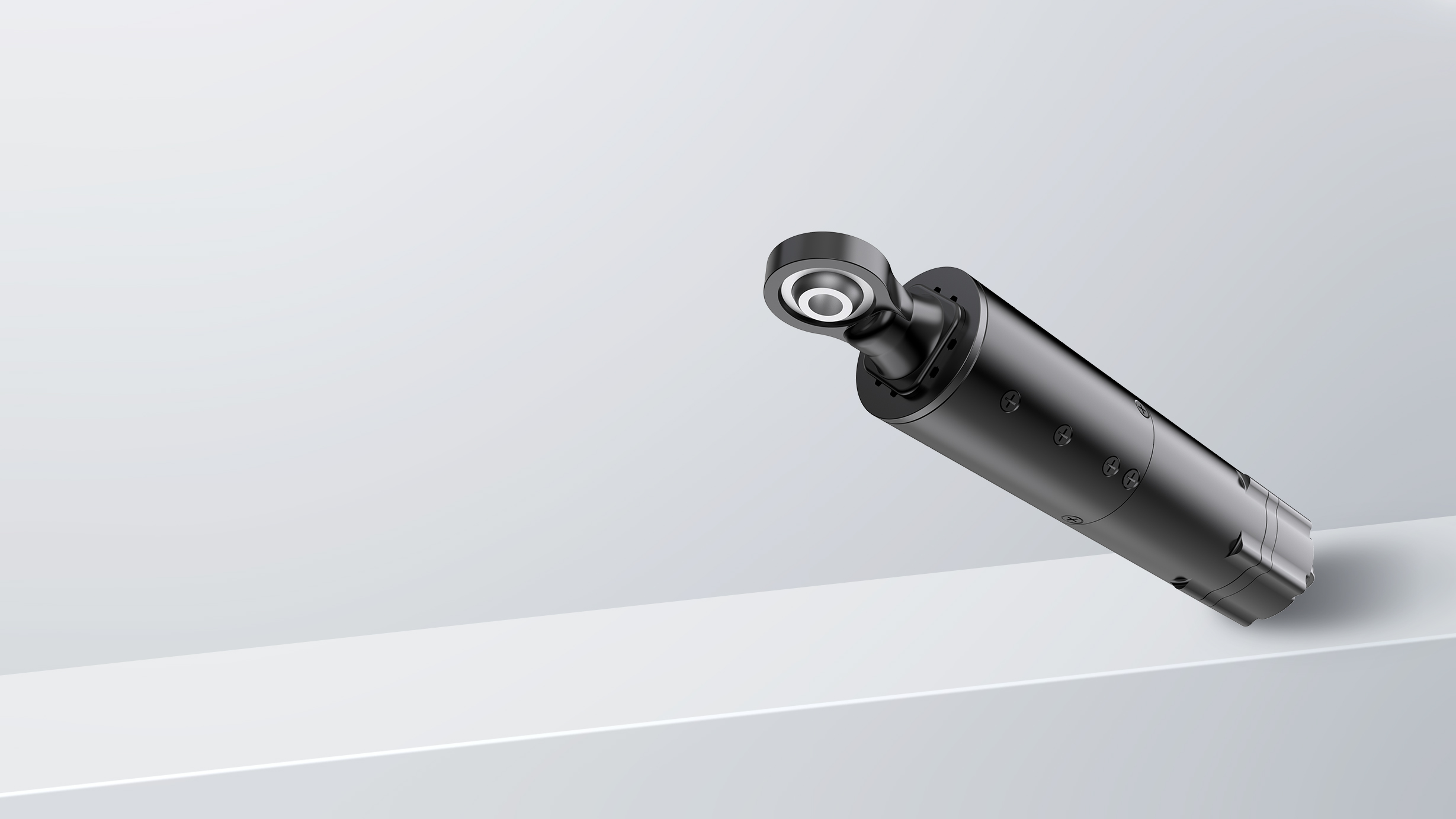

Integrated High-Precision Linear Drive Core
Combining ball screw, motor and dual-encoder system in one compact unit, T28 achieves 0.01mm repeatable positioning capability.
Ensuring rock-solid motion accuracy for high-performance robotic applications.
High-Precision Linear Stage: Powering Intelligent Multi-Scenario Applications
With its high thrust capacity, micron-level accuracy, and compact design, T28 delivers ultra-stable linear motion solutions.
Seamlessly adapts to both industrial precision assembly lines and commercial interactive applications.

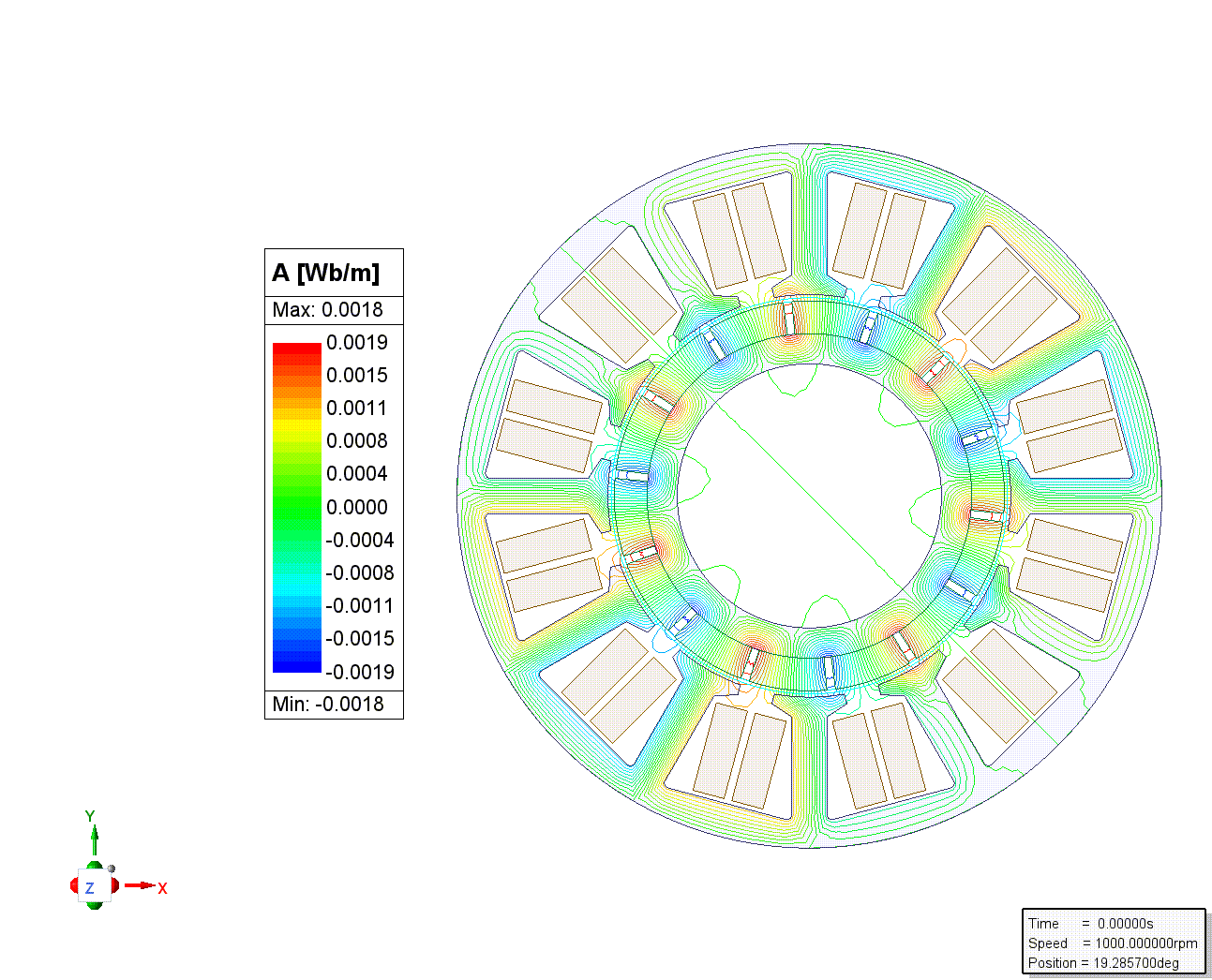

Optimized design of flux density, selection of optimal pole-slot fitReduction of harmonic distribution coefficients and elimination of tooth harmonics

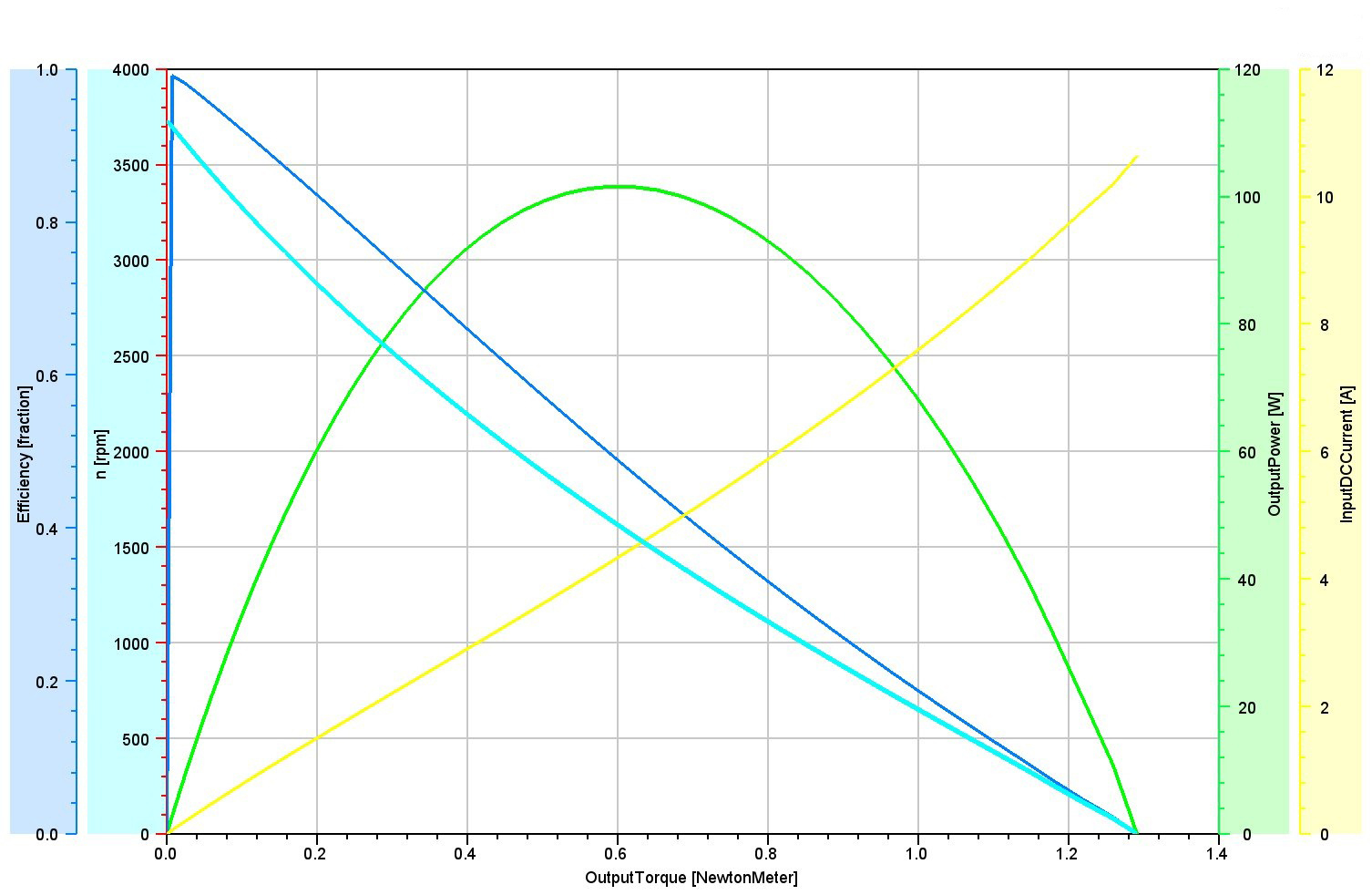

Motor Control Characteristic Curve
产品参数
Gearbox Type
Ball Screw
Maximum Speed
116mm/s
Module Weight
340g
Max Stroke
40mm
Dimensions
φ32*155
Rated Thrust
300N
Communication Interface
RS485
Peak Thrust
750N
Recommended Operating Environmen
-5℃~40℃
Encoder Configuration
Dual Encoder
Operating Voltage
48V (Recommended)
Motor Encoder Resolution
18Bit
Control Frequency
25,000Hz
Motor Feedback
Position, Speed, Temperature

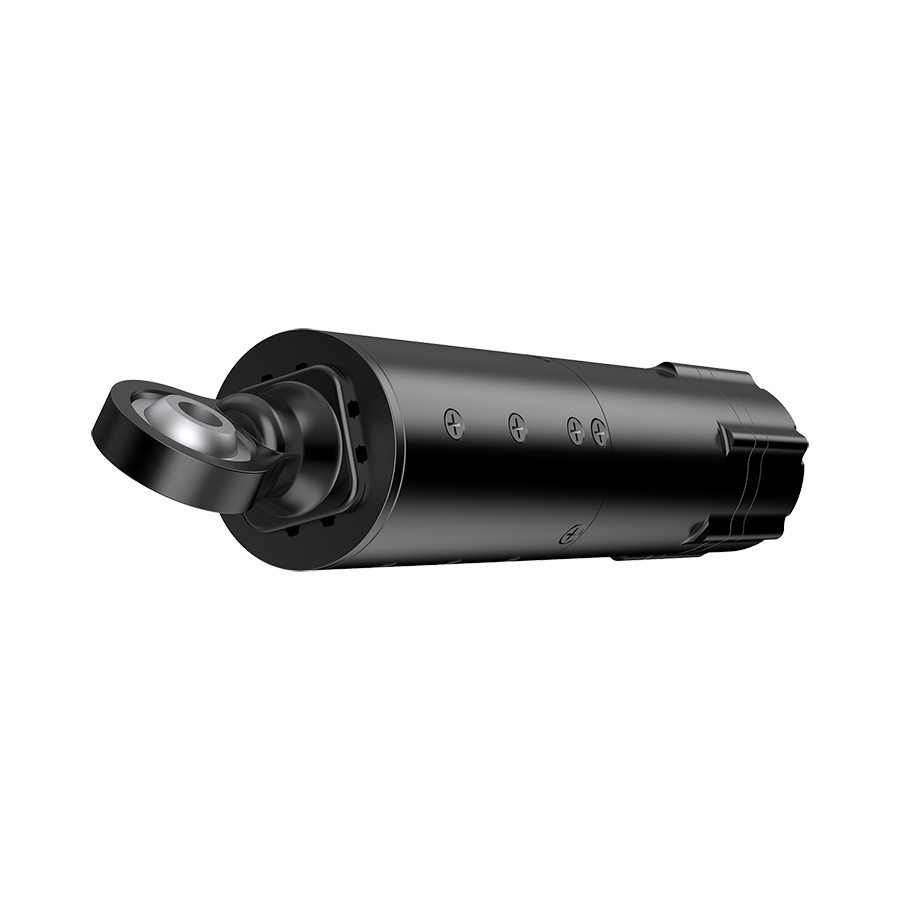

45° Angle

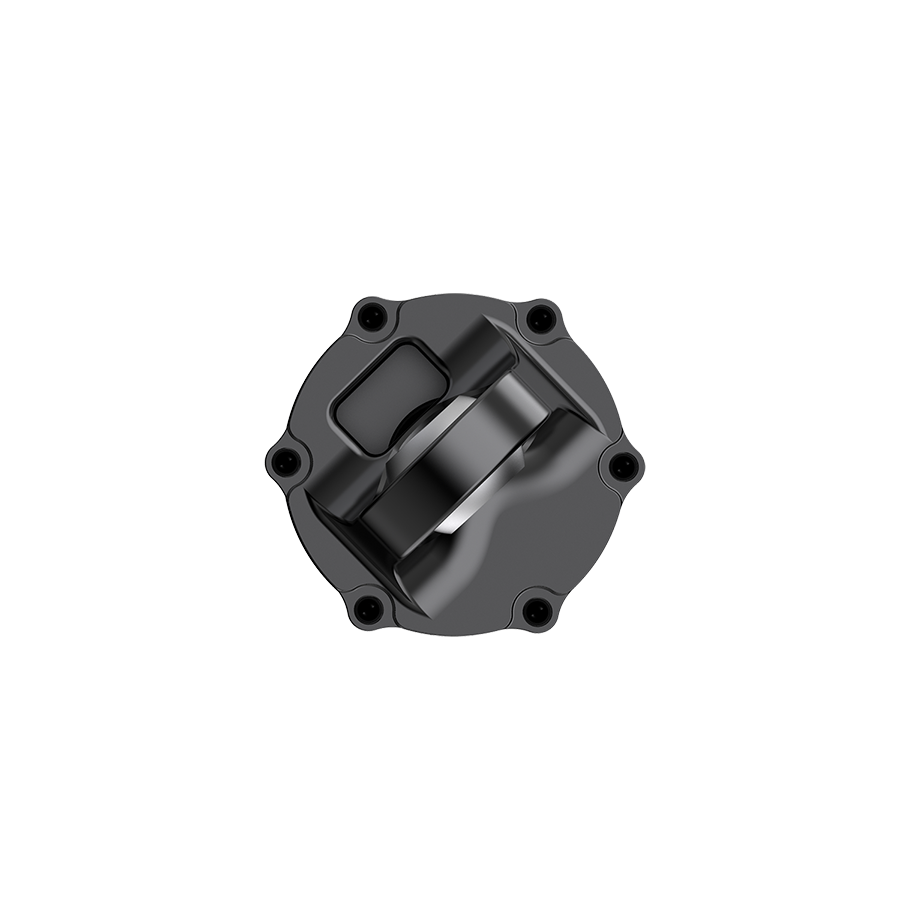

Front View

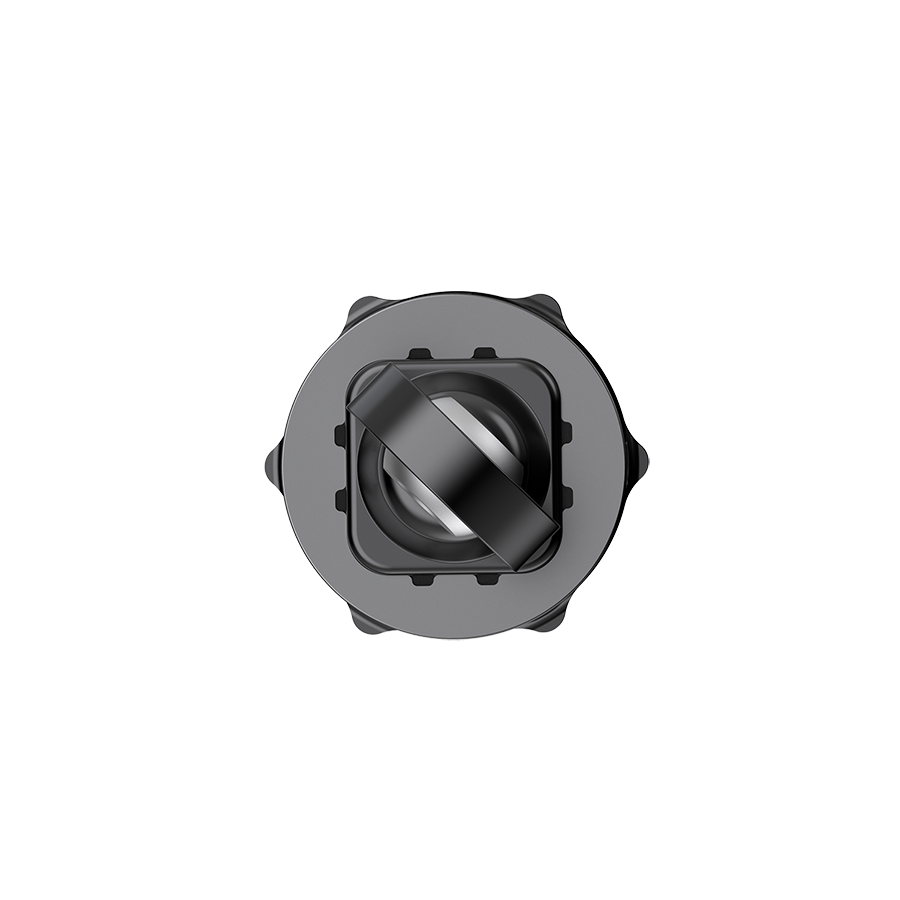

Rear View

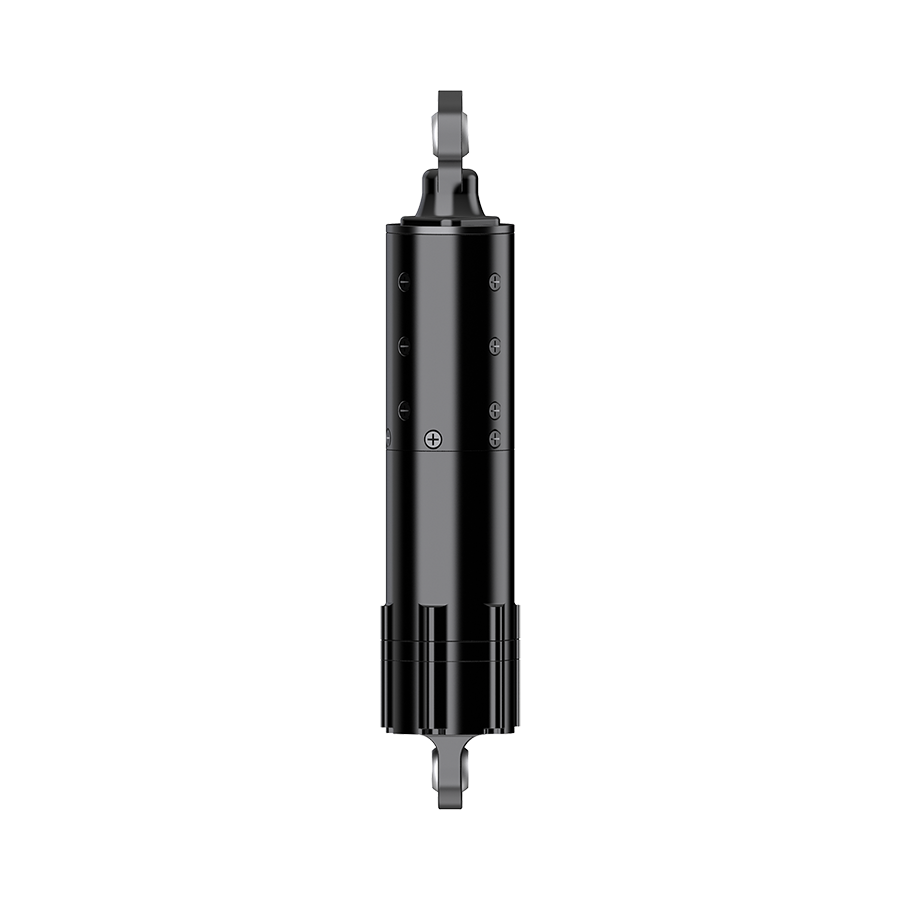

Side View

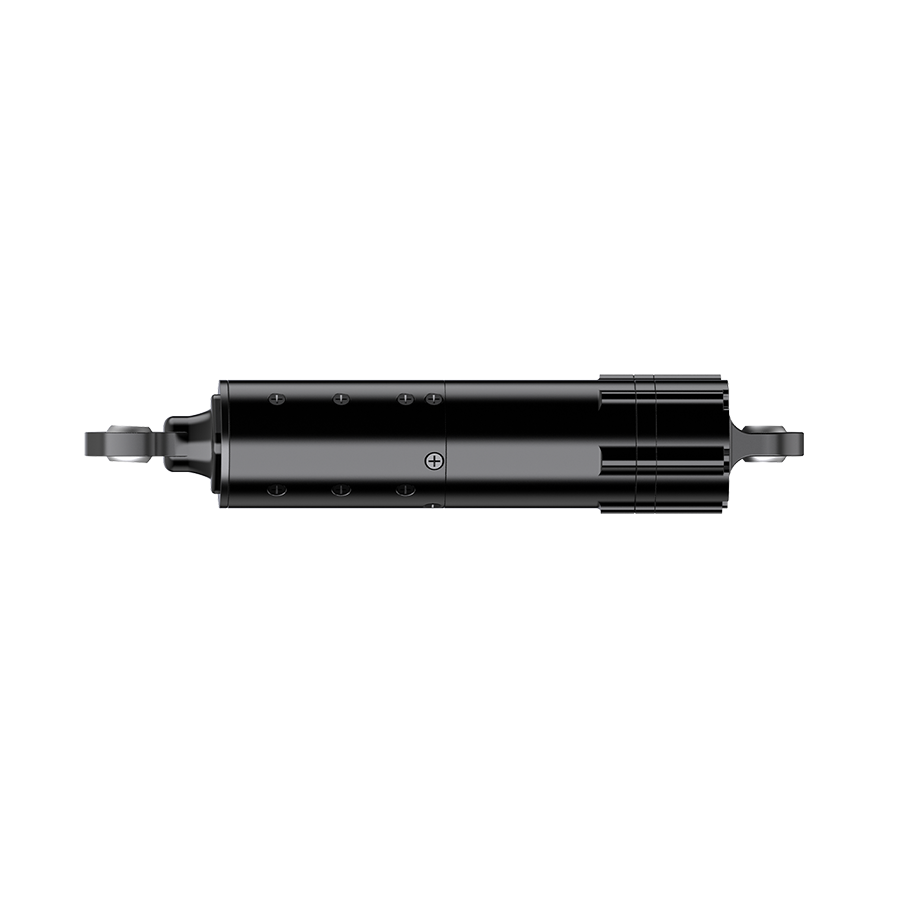

Top View
