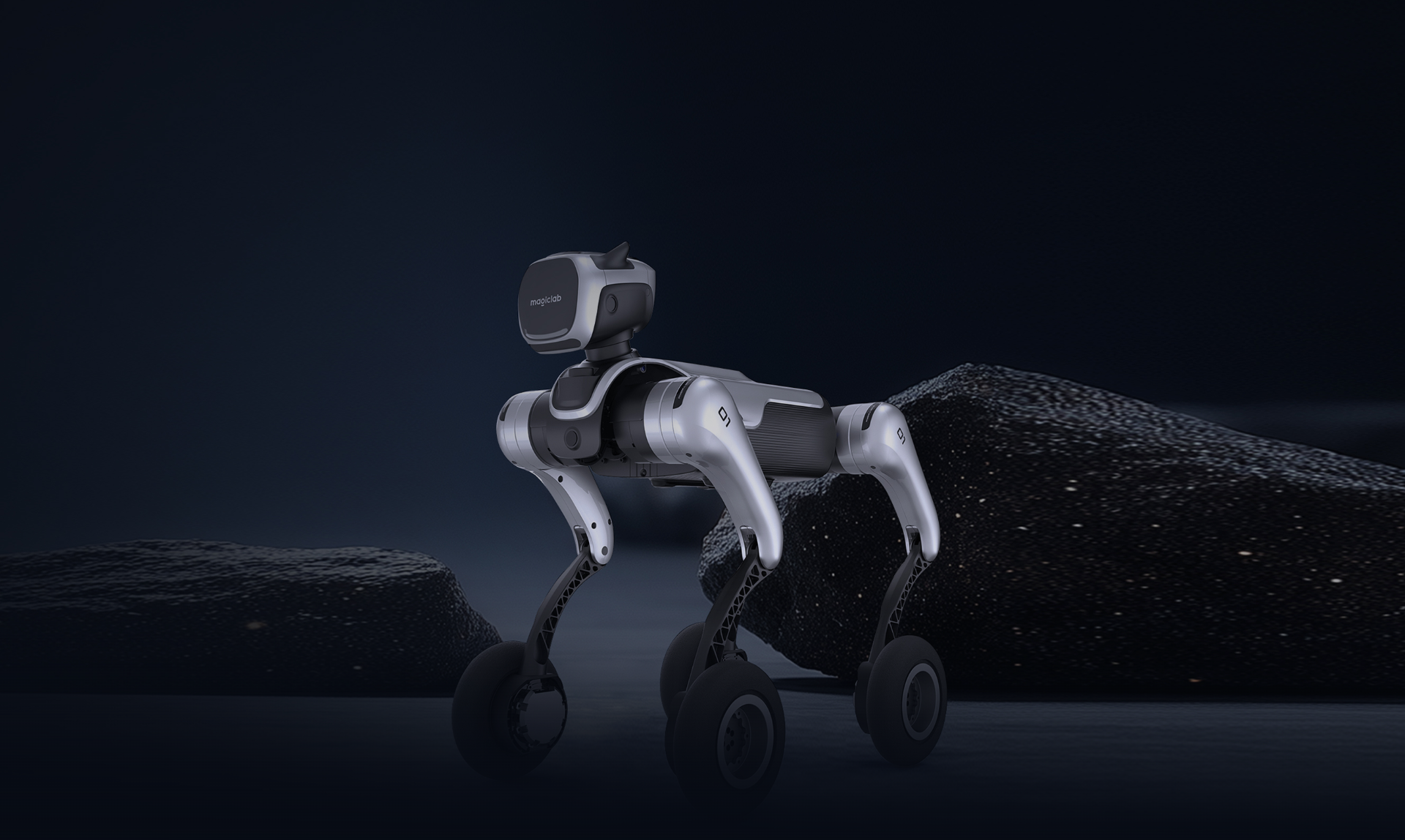

MagicDog-W
Dual Forms, Synchronized Intelligent Control
Interwoven Steps and Slides, Racing Like the Wind
Fearless of Heights, Reaching Anywhere with Ease
Bidirectional Moving, Forward and Backward
Intelligent Posture Control, Handstands as Naturally as Walking
Powerful Load Capacity Allows for Functional Expansion
Equipped with a versatile backplate and compatible with expansion docks for mounting various peripherals such as LiDAR, gimbals, and more.
MagicLab Quadruped Wheeled RobotMagicDog-W
| Specifications | MagicDog-W | |
|---|---|---|
| Mechanical Parameters | Standing Dimensions | 670*350*650mm |
| Prone Dimensions | 720*500*290mm | |
| Material Information | Aluminum Alloy + High-Strength Engineering Plastic | |
| Tire Type and Size | 7-inch Pneumatic Tire | |
| Motor Number | 16+1 (Head Motor) | |
| Head Rotation Angle | ≥ 100° | |
| Maximum Joint Torque | 37.5 N·m | |
| Total Weight | Approx. 22.5 kg (with battery) | |
| Payload | Maximum 10 kg | |
| Motion Speed | ≥ 3.0 m/s | |
| Climbing Drop Height | ≥ 60 cm | |
| Climbing Slope Angle | ≥ 40° | |
| Electrical Parameters | Basic Computing Power | 8-core High-Performance CPU |
| Sensors | 2D LiDAR + Dual Camera + Depth Camera + 4K HD Camera + Fisheye Camera + Ultrasonic Sensors | |
| Audio Module | Omnidirectional Microphone, Speaker | |
| Communication Module | WiFi 5, 4G Module, BT 5.0 | |
| Touch Perception | Touch Sensors | |
| Touch Feedback | Supports ≥4 touch methods. The robot’s head provides corresponding facial. | |
| Accessories | Expansion Modules | Standard Computing Module (Orin NX, 157 TOPS) |
| Battery | Capacity: 8200 mAh, Rated Voltage: 29.6 V | |
| Other | Facial Expression Display | 24 |
| Battery Life | 2-4 h | |
| Standby Time | Up to 8 hours (tested) | |
| OTA Upgrade | Support | |
| Operating Temperature Range | -5° ~ 40° |
