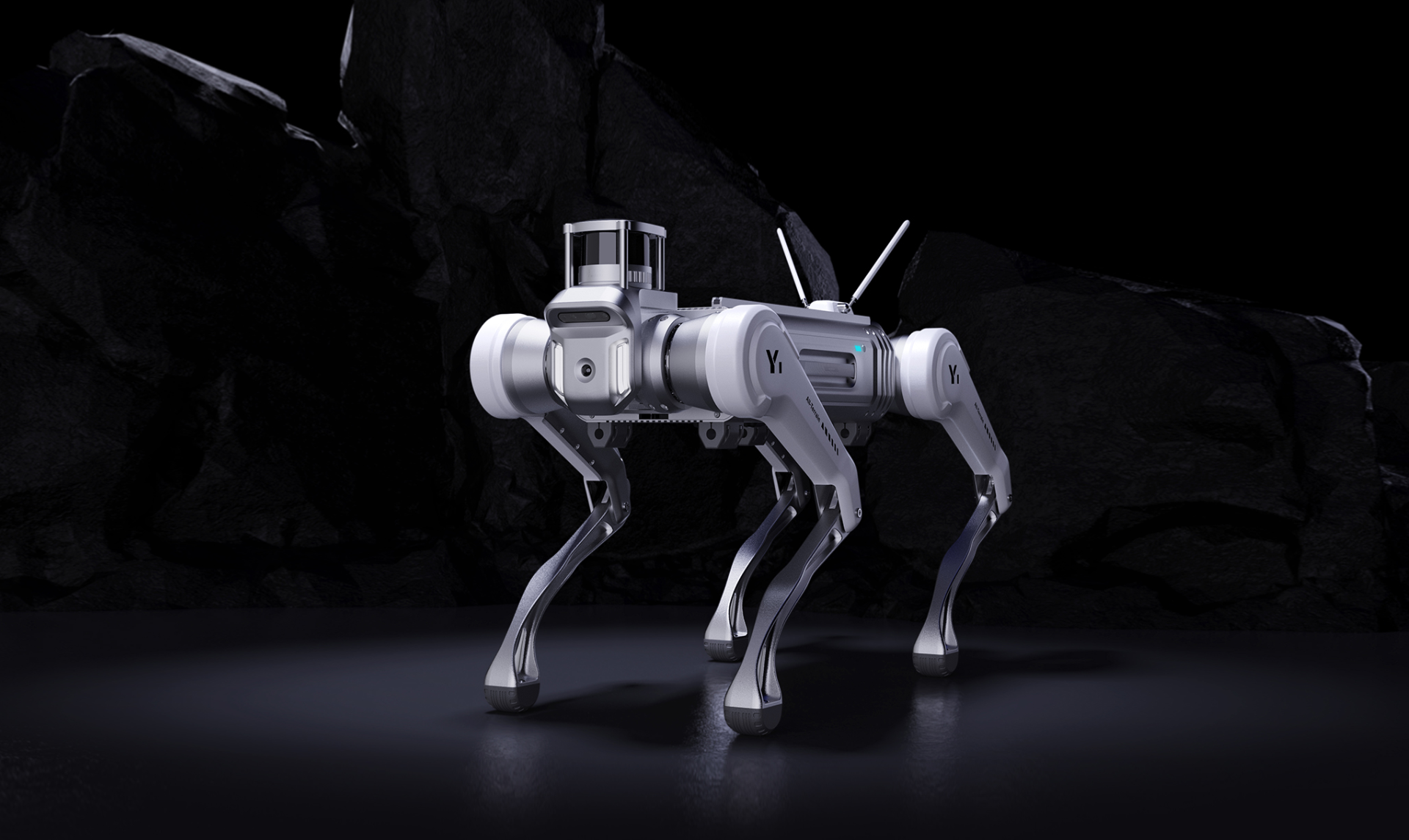

MagicDog Y1
Industry-Leading Robust Performance & Load Capacity
45kg mobile payload + 150kg maximum load capacity, 6m/s high-speed operation - the perfect fusion of power and agility
All-Terrain Adaptability & Obstacle Navigation
Conquers complex terrains like 45° slopes, stairs, rocky surfaces, and shallow waters with ease - fearlessly tackling challenging environments
Ultimate Stability & Impact Resistance
Ultra-reliable balance algorithms ensure rock-solid stability even under powerful impacts, delivering flawless performance in mission-critical operations
Extreme operating conditions: aviation-grade body + IP67 protection level
Aircraft-grade material body + IP67 protection, stable operation from -20℃ to 55℃, stable operation in all weather conditions such as high temperature, cold, wind, sand, rain and snow
Multi-Sensor Fusion Perception
Deep integration of multiple sensors with 360° environmental awareness - an intelligent decision-making expert for complex scenarios
MagicLab Industrial Quadruped RobotMagicDog Y1
| Specifications | MagicDog Y1 | |
|---|---|---|
| Mechanical Parameters | Dimensions (L × W × H) | 915mm×458mm×800mm |
| Total Weight (with Battery) | ≤65Kg (with Battery) | |
| Maximum Payload | 150kg | |
| Dynamic Payload | 45kg | |
| Maximum Speed | 6m/s | |
| Maximum Climbing Height | ≥60cm | |
| Battery Capacity | 45Ah (2400Wh), Voltage 54V | |
| Operating Time | 4–6h ( >4 h continuous walking with 20 kg load ) | |
| Ingress Protection Rating | IP67 | |
| Maximum Slope Angle | ≥45° | |
| Electrical Characteristics | Base Computing Power | 8-Core High-Performance CPU |
| Extended Computing Power | High-Performance Computing Module (157 TOPS) | |
| Communication Module | Wi-Fi 6, BT 5.2, 5G Communication Module (optional for some versions) | |
| Perception Sensors | 3D LiDAR ×1 + Depth Cameras ×2 + Optical Cameras ×2 (configurations may vary) | |
| Expansion Modules | User Expansion Interfaces | (24V+485 output)*4 power supply + power bus, USB3.0*4, (12V output+EthNet)*3 power supply + network; EthCat x 1 |
| Mounting Holes for Expansion Parts | Extension Boards, Sliding Rails, Screw Mounts, Payload Platform | |
| Supported Expansion Devices | Infrared Thermal Imager, Dual-Light PTZ Camera, Gas Sensor, Acoustic Imager, Partial Discharge Sensor, etc. |
